AG-GDT-310 Toxic Gas Detectors

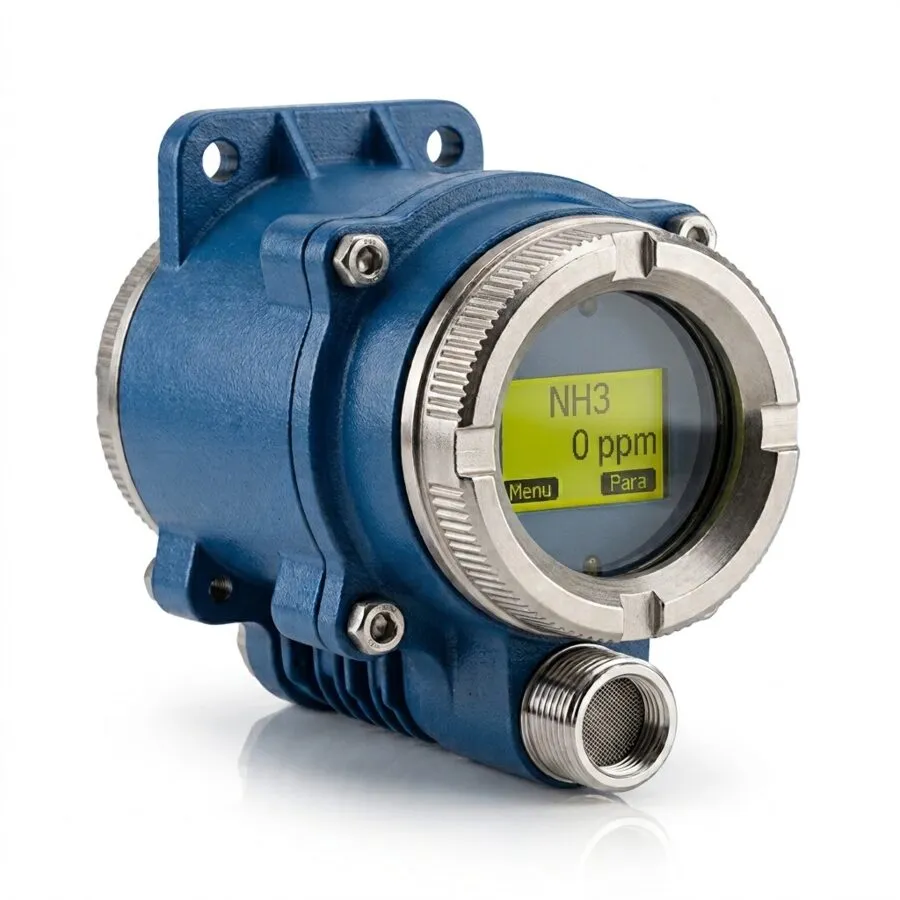

Fixed Ammonia Detector
Electrochemical NH₃ detection for refrigeration plant rooms and cold stores
4–20 mA Modbus RTU
Features
- Ammonia refrigeration machinery rooms require fixed detection under most national codes
- Low alarm for occupational exposure; high alarm for emergency ventilation and plant shutdown
- Ammonia is lighter than air and rises — pair a high-level head with one at the machinery
- Reports directly to BMS or PLC alongside the refrigeration controls
Enquire about this product
No forms — email directly to sales@agcontrolli.com
24-month warranty · Technical support included
Specifications
| Target Gas | Ammonia (NH₃) |
| Measuring Range | Configured to application — confirm at order |
| Sensor Technology | Electrochemical cell |
| Alarm Stages | Two, field-adjustable (high and low) |
| Output Signal | 4–20 mA and RS-485 Modbus RTU — confirm configuration at order |
| Supply Voltage | 24 V DC |
| Display | LCD showing live concentration |
| Protection Rating | Water and dust protected — confirm rating at order |
| Certifications | Manufacturer states CE, ATEX |
Applications
- Ammonia refrigeration plant rooms
- Cold stores and food processing
- Ice rinks
- Chemical dosing and storage areas
Compatible Platforms
Reliable Controls MACH-ProSysSiemens Desigo CCHoneywell EBISchneider EcoStruxureJohnson Controls Metasys
Works with any BMS that accepts 4–20 mA / Modbus RTU signals.
