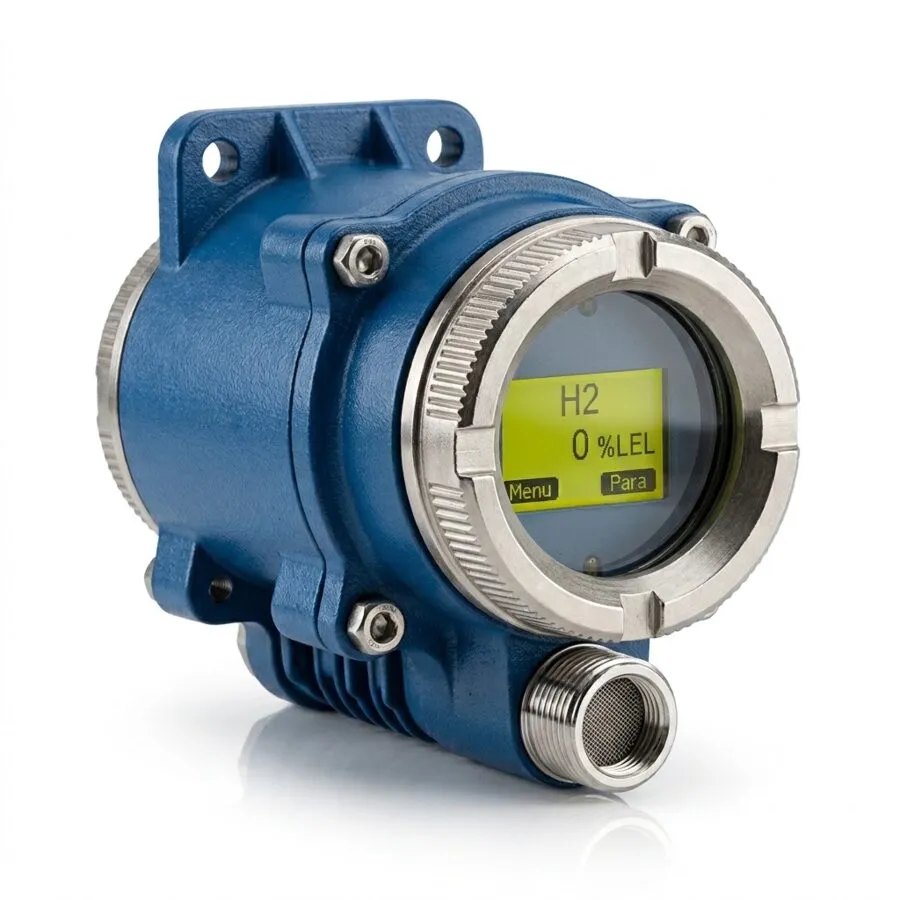

AG-GDC-150 Flammable Gas Detectors

Fixed Hydrogen Detector

Catalytic bead hydrogen detection for battery rooms and electrolyser areas

4–20 mA Modbus RTU

Hydrogen is the lightest gas — mount at the highest point of the room and in every roof pocket
Standby batteries vent hydrogen on charge; detection is normally interlocked to the room ventilation
Two field-adjustable alarm stages drive ventilation boost and charger shutdown independently
Catalytic sensors require scheduled bump testing and calibration to remain reliable

No forms — email directly to sales@agcontrolli.com

24-month warranty · Technical support included

Specifications

Target Gas	Hydrogen (H₂)
Measuring Range	Configured to application — confirm at order
Sensor Technology	Catalytic combustion (pellistor)
Alarm Stages	Two, field-adjustable
Output Signal	4–20 mA and RS-485 Modbus RTU — confirm configuration at order
Supply Voltage	24 V DC (12–36 V DC depending on variant)
Display	LCD showing live concentration
Certifications	Manufacturer states CE, ATEX

Reliable Controls MACH-ProSysSiemens Desigo CCHoneywell EBISchneider EcoStruxureJohnson Controls Metasys

Works with any BMS that accepts 4–20 mA / Modbus RTU signals.

Fixed Combustible Gas Detector

Explosion-proof catalytic bead detector for methane and combustible gases, 0–100 % LEL

Fixed Carbon Monoxide Detector

Explosion-proof electrochemical CO detector for occupied plant rooms, 0–1000 ppm

Fixed Oxygen Deficiency Monitor

Oxygen depletion and enrichment monitoring where nitrogen, argon or CO₂ is stored, 0–30 % vol

Send us your pipe size, media, range and protocol — we'll confirm availability and lead time.
